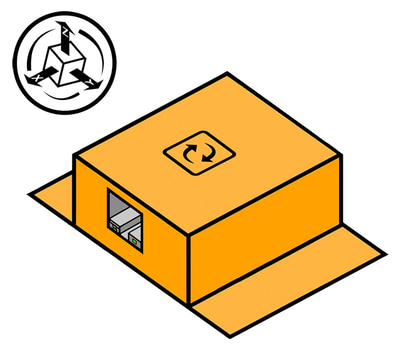

The SEC-TILT measures the banking angle of the structure it is mounted onto and reports it across three axes:

- X, Y and Z axes displayed individually.
- Tilt measurement of up to ±180 degrees in either direction.
- Values presented in degrees for precise monitoring.
- Versatile mounting — the sensor can be installed in any orientation.

Threshold alerting is handled by the base unit: define the angle on any axis at which you want to be alerted, and the base unit raises an alert via email, SMS or voice call the moment it is exceeded.

For some critical applications, a ground-level structure is paramount. A structure that slowly banks — through subsidence, ground movement, impact or structural fatigue — rarely announces itself before the problem is serious.

The SEC-TILT turns the banking angle into a continuously measured, recorded value:

- Detect slow drift from a level baseline over time.
- Detect sudden changes from impacts or ground movement.
- Trend the angle per axis via the base unit and optional Monitoring Software.

Rather than discovering a banked structure at the next site visit, you are alerted the moment it moves out of tolerance.

The sensor is used on mission critical structures where the banking angle must be monitored and recorded:

- Cell towers & base stations: antenna alignment and structural integrity depend on the tower staying within its designed angle.
- Outdoor cabinets: detect subsidence of the foundation, vehicle impacts or tampering at unmanned sites.
- Telecom equipment rooms: monitor the structures your equipment is mounted onto.

Like all InfraSensing sensors, the SEC-TILT can be queried by any 3rd party system over SNMP or Modbus TCP — so the measured angle feeds straight into the monitoring platform your operations already use.

- Connects to the base unit over standard network cable.
- BMS integration over Modbus TCP, BACnet IP & Modbus RTU (RS-485, with the optional RTU addon).
- SNMP GET and SNMP TRAPS for NMS & DCIM platforms.
- MQTT for Industrial IoT applications (BASE-6).
- Alerting via email, SMS and voice call from the base unit itself.
- Plug & play — no configuration required on connection.
