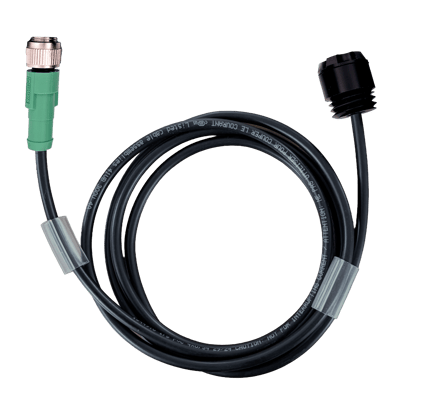

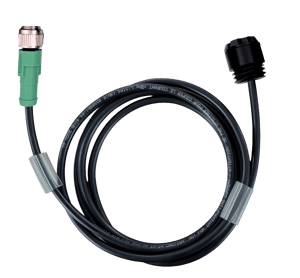

Cylindrical Daisy Chained
Temperature & Humidity Sensorfor data center white spaces
ISO17025 calibrated
Temperature & Humidity Sensor
for data center white spaces
ISO17025 calibrated
ISO17025 calibrated
key sensor features
Plug & play, ISO17025 calibrated sensor designed for monitoring temperature & humidity inside racks and hot/cold aisles in data center white spaces.
- measures temperatures -55°C to +125°C (-67ºF to +257ºF)
- ISO17025 calibrated temperature sensor
- a resolution of 0.02°C
- with a ±0.5% accuracy from 0°C- to +50°.
- measures relative humidity between 0% and 100%.
- with a ±2% rH accuracy.
-
Maximum number of sensors on one string*:
- BASE-5: up to 40 sensors on one string (requires FW v9.3 or higher)
- BASE-IND-6: up to 80 sensors on one string
* requires a minimum of 9V power supply to the sensor to operate.
- optional DAISY-BOOSTER to increase voltage again to 14v when along the string voltage drops below required min 9v.
Optional features:
- RS-485 (Modbust RTU) output
- compact plug & play sensor.
- designed for indoor use.
- steel enclosure for non-power sensors or non-IP sensors.
- custom color & logo options available.
- industrial grade.
- 0u rack, DIN rail, magnetic or wall mountable sensor.
- plugs into the base unit.
- powered by the base unit (PoE, 12v DC, optionally 24v or -48v)
- alerts via SNMP Traps, email or SMS.
- out of the box integration via Modbus TCP, SNMP.
- optional integration via MQTT for Industrial IoT applications1
.
- optional integration via RS-485 enabling direct integration with your own gateway & controllers.2
1Requires BASE-XXX-6
2Some sensors are not available in RS-485 native versions. In that case RS-485 is available using the optional Modbus RTU module.
- measures temperatures -55°C to +125°C (-67ºF to +257ºF)- ISO17025 calibrated temperature sensor
- a resolution of 0.02°C
- with a ±0.5% accuracy from 0°C- to +50°.
- measures relative humidity between 0% and 100%.
- with a ±2% rH accuracy.
-
Maximum number of sensors on one string*:
- BASE-5: up to 40 sensors on one string (requires FW v9.3 or higher)
- BASE-IND-6: up to 80 sensors on one string
* requires a minimum of 9V power supply to the sensor to operate.
- optional DAISY-BOOSTER to increase voltage again to 14v when along the string voltage drops below required min 9v.
Optional features:
- RS-485 (Modbust RTU) output
- compact plug & play sensor.
- designed for indoor use.
- steel enclosure for non-power sensors or non-IP sensors.
- custom color & logo options available.
- industrial grade.
- 0u rack, DIN rail, magnetic or wall mountable sensor.
- plugs into the base unit.
- powered by the base unit (PoE, 12v DC, optionally 24v or -48v)
- alerts via SNMP Traps, email or SMS.
- out of the box integration via Modbus TCP, SNMP.
- optional integration via MQTT for Industrial IoT applications1
.- optional integration via RS-485 enabling direct integration with your own gateway & controllers.2
1Requires BASE-XXX-6
2Some sensors are not available in RS-485 native versions. In that case RS-485 is available using the optional Modbus RTU module.
Designed for monitoring hot & cold aisles - free hanging
With this unique daisy chained sensors, data center operators can now start monitoring their racks at a lower cost of ownership compared to most wired and wireless solutions.
Using just one base unit and one IP address, up to 15 temperature & humidity sensors can be deployed in your cold & hot aisles.
Using just one base unit and one IP address, up to 15 temperature & humidity sensors can be deployed in your cold & hot aisles.
No wireless & no battery problems
Wireless technologies like Zigbee suffer from unstable connections due to interference from Wifi and LED lights. Connectivity issues also drain batteries resulting in down time and an increased total cost of ownership.
With the daisy chained sensor you won't face radio or batteries issues: the sensor is connected using a wired cable connection and is powered by the base unit.
With the daisy chained sensor you won't face radio or batteries issues: the sensor is connected using a wired cable connection and is powered by the base unit.
No PC or Software Required
The InfraSensing sensors connect to the base unit (BASE-5). The base unit is a standalone device that has its own IP address in your network. On its own it will monitor the sensor and trigger alerts via email, SNMP or optional SMS when needed.
There is no software or PC required for the sensors to run.
With our optional Monitoring Software you can centrally monitor sensors with trending and more. This is optional and not required.
